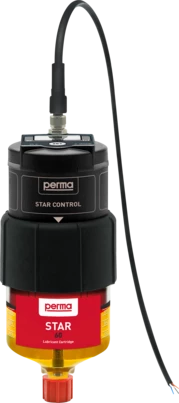

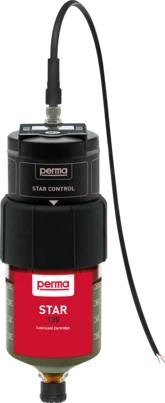

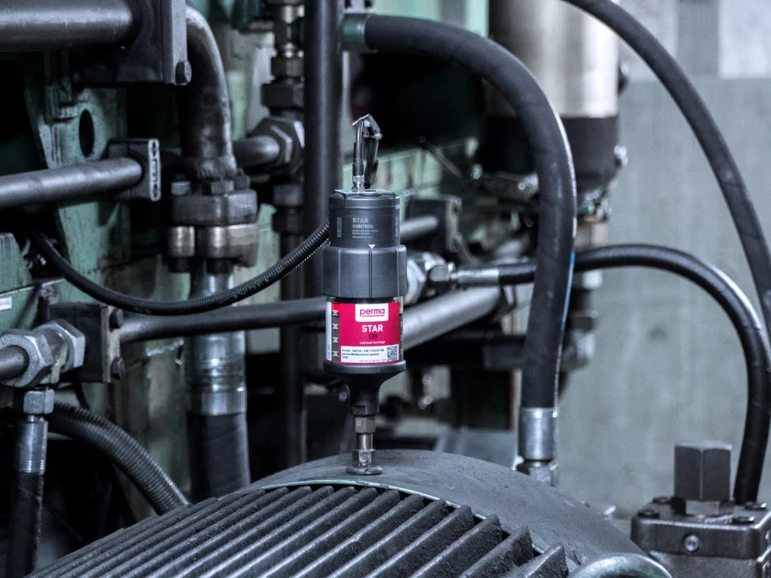

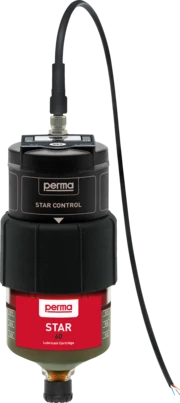

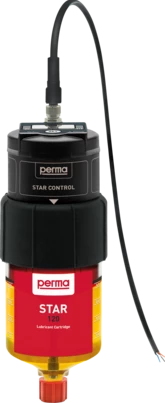

perma STAR CONTROL is used to lubricate roller and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals and chains. Due to the precise lubricant metering, perma STAR CONTROL is ideally suited for lubrication of electric motors with specified lubricant quantities. The system is protected against dust and water jets, subject to correct assembly of the individual parts (IP65).

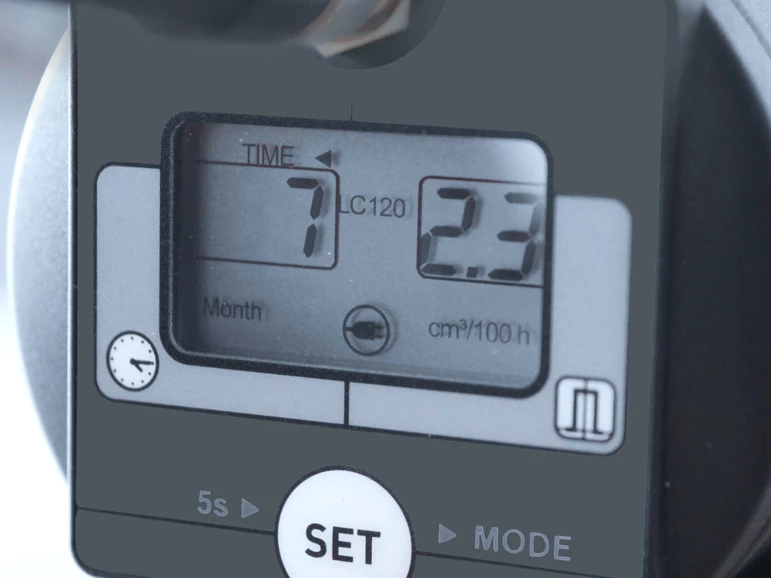

LCD display with push button shows discharge settings, LC size and operating status
- Flexible handling via TIME or IMPULSE mode
- Fast, simple control of settings
- PIN protects against possible tampering
Electromechanical drive with external power supply
- LED visible all round signals functioning and errors
- Reliable lubricant discharge independent of temperature and counter pressure
- Quick function control due to visaul signals and on plant error reporting system
Pressure build-up to 7.5 bar allows remote mounting up to 5 m
- Manual additional discharge via push button on display (purge)
- Mounting outside of dangerous areas increases workplace safety
- LC can be exchanged during running operation
- Lubrication point can be purged to clear blockages
| Drive | Electromechanical |
|---|---|
| Power supply | External: 9 - 30 V DC, I (max) 0,5 A |
| Housing | Transparent plastic |
| Discharge period | 1, 2, 3, ..., 12 months | 1, 2, 3, ..., 26 weeks STAR LC 60: + 15, 18, 21, 24 months STAR LC 500: max. 6 months Impulse control |
| Lubricant volume | 60 cm³, 120 cm³, 250 cm³, 500 cm³ |
| Operating temperature | -40 °C to +60 °C |
| Pressure build-up | 7.5 bar |
| Protection class | IP 65 |
| Lubricants | Grease up to NLGI 2 / oil |
| Max. tube lengths | 5.00 m |
| Impulse controlled | ✓️️ |
| CE | ✓️ |
